PVC is one of the most widely processed thermoplastics, but it also presents a particular manufacturing challenge: PVC can begin to degrade when exposed to the heat and shear required for processing. Once degradation starts, discoloration, hydrogen chloride release, unstable melt behavior, surface defects, and declining mechanical properties may follow.

For manufacturers producing PVC pipes, fittings, profiles, cable compounds, sheets, and other rigid or semi-rigid products, maintaining a stable processing window is therefore essential.

A properly formulated lead salt stabilizer helps control thermal degradation during mixing, extrusion, and molding, allowing processors to achieve more consistent output, appearance, and product properties.

This article explains how lead salt stabilizers work, where they are commonly used, and which factors PVC manufacturers should consider when selecting a stabilization system.

Why Does PVC Need a Heat Stabilizer?

PVC contains chlorine atoms along its polymer backbone. At elevated processing temperatures, unstable sections of the PVC chain can begin releasing hydrogen chloride, commonly referred to as HCl.

This reaction can accelerate itself.

Once degradation begins:

1. HCl is released from the PVC chain.

2. Additional unstable structures are formed.

3. These structures promote further decomposition.

4. More HCl is generated.

5. Color and physical properties deteriorate increasingly quickly.

Without an effective stabilization system, PVC may gradually change from white or light-colored material to yellow, brown, and eventually darkened material.

More importantly, degradation is not only a visual problem. It can negatively affect:

• melt stability;

• mechanical strength;

• electrical properties;

• surface quality;

• extrusion consistency;

• long-term product performance.

This is why a suitable PVC heat stabilizer is an important part of the formulation.

What Is a Lead Salt Stabilizer?

Lead salt stabilizers are inorganic or organometallic lead-based compounds traditionally used for the thermal stabilization of PVC.

Common examples historically used in PVC formulations include:

• tribasic lead sulfate;

• dibasic lead phosphite;

• dibasic lead stearate;

• lead stearate;

• blended lead-based stabilizer systems.

In modern industrial production, manufacturers may also use one-pack lead stabilizer systems, in which stabilizers, lubricants, processing aids, and other functional additives are combined into a controlled formulation.

The objective is not simply to add a single chemical to PVC. The stabilization package needs to work together with the PVC resin, fillers, lubricants, pigments, and processing conditions.

How Lead Salt Stabilizer Improves PVC Processing Stability

1. Delays Thermal Degradation

The primary function of a lead salt stabilizer is to increase the thermal stability of PVC during processing.

PVC extrusion commonly exposes the material to sustained heat inside:

• high-speed mixers;

• extruder barrels;

• screws;

• dies;

• calibration sections.

If thermal stability is insufficient, degradation may occur before the product leaves the die.

Lead-based stabilizing systems react with degradation products and help suppress the chain reaction associated with PVC decomposition.

This provides manufacturers with a wider and more controllable processing window.

For continuous production lines, this can be especially important because even small variations in temperature or residence time may influence final product quality.

2. Helps Neutralize Released HCl

Hydrogen chloride generated during PVC degradation accelerates further decomposition.

An effective lead stabilizer can react with acidic degradation products and reduce their catalytic effect.

By controlling HCl accumulation, the stabilizer helps slow further polymer damage.

This contributes to:

• longer heat stability;

• reduced rapid discoloration;

• more stable melt behavior;

• more consistent extrusion.

This function becomes particularly important when PVC is exposed to relatively long residence times during manufacturing.

3. Improves Initial and Long-Term Color Stability

Color stability is one of the easiest indicators of PVC processing quality.

Poor stabilization may cause products to change color during extrusion, particularly in white or light-colored products such as:

• PVC pipes;

• electrical conduits;

• window profiles;

• wall panels;

• fittings.

An optimized lead salt stabilizer system can help delay yellowing and maintain more uniform product color throughout production.

However, color performance depends on the complete formulation rather than the stabilizer alone.

Pigments, titanium dioxide, calcium carbonate, lubricants, processing temperature, residence time, and recycled material content may all influence the final appearance.

For this reason, stabilizer dosage should normally be evaluated together with the complete PVC formulation.

4. Provides a Wider Processing Window

A stable production process does not depend on maintaining one exact processing temperature.

In real factories, conditions continually fluctuate because of:

• changes in ambient temperature;

• equipment loading;

• resin batches;

• screw wear;

• production speed;

• filler content;

• operator adjustments.

A suitable PVC lead stabilizer improves tolerance to these variations.

A wider processing window allows the PVC compound to remain stable when exposed to moderate fluctuations in heat and shear.

For manufacturers operating continuous extrusion lines, this can contribute to fewer unexpected production interruptions.

5. Supports Consistent Melt Behavior

Heat stabilization also affects how PVC behaves inside processing equipment.

When degradation is controlled, manufacturers can maintain more predictable material behavior during extrusion.

Stable melt behavior can help improve:

• material fusion;

• dimensional consistency;

• die flow;

• surface appearance;

• production repeatability.

This is particularly important for products requiring tight dimensional tolerances, such as PVC pressure pipes, conduit, profiles, and technical fittings.

Role of Lubrication in Lead Stabilizer Systems

Many commercial lead stabilization systems are formulated together with internal and external lubricants.

Lubrication is important because PVC processing requires a balance between sufficient fusion and controlled friction.

Internal Lubrication

Internal lubricants reduce friction between PVC polymer chains.

They can help regulate:

• melt viscosity;

• fusion behavior;

• internal shear.

External Lubrication

External lubricants reduce friction between the PVC melt and metal processing surfaces.

They help prevent excessive adhesion to:

• screws;

• barrels;

• dies;

• molds.

A properly balanced stabilizer-lubricant package therefore contributes not only to heat stability but also to overall processing consistency.

Too much lubrication, however, may delay fusion, while insufficient lubrication can increase friction and processing temperature.

This is why a well-designed one-pack PVC stabilizer can simplify formulation control for PVC processors.

Typical Applications of Lead Salt Stabilizers

Lead-based stabilization systems have historically been associated particularly with rigid PVC products where strong heat stability and processing reliability are important.

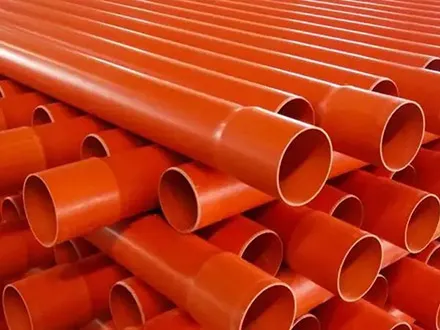

PVC Pipes

PVC pipe extrusion requires consistent thermal stability during continuous production.

Typical applications include:

• drainage pipes;

• electrical conduit;

• non-pressure pipes;

• selected industrial PVC piping products.

Proper stabilization helps maintain dimensional consistency and reduce thermal degradation during long production runs.

PVC Fittings

Injection molding of PVC fittings can expose the material to significant heat and shear.

Stabilizers help maintain processing stability while supporting consistent filling and appearance.

PVC Profiles

Rigid profiles require careful control of fusion and melt temperature.

These may include:

• construction profiles;

• decorative profiles;

• industrial PVC profiles;

• selected window and door profile formulations.

Stable processing helps maintain profile geometry and surface quality.

PVC Cable Compounds

Certain lead-based stabilizer systems have also historically been used in PVC wire and cable compounds because of their heat stabilization and electrical insulation characteristics.

The appropriate system depends on the required electrical, thermal, mechanical, and regulatory specifications of the finished cable.

PVC Sheets and Boards

Rigid PVC boards and sheets may experience extended thermal exposure during extrusion.

Adequate heat stabilization helps reduce discoloration and processing instability while supporting continuous sheet production.

Lead Stabilizer vs. Other PVC Stabilizer Systems

PVC manufacturers now have several stabilization technologies available.

Common alternatives include:

• calcium-zinc stabilizers;

• organotin stabilizers;

• barium-zinc systems;

• other specialized mixed-metal stabilizers.

The appropriate choice depends on factors such as:

There is therefore no universally suitable PVC stabilizer.

The better approach is to match the stabilizer system to the PVC formulation, production equipment, target product, and destination market.

Factors Affecting Lead Salt Stabilizer Dosage

Using more stabilizer does not automatically create better PVC.

Dosage needs to be optimized.

Important factors include:

PVC Resin K-Value

Different PVC resin grades have different molecular weights and processing behavior.

The stabilizer package should therefore match the resin used.

Calcium Carbonate Content

Filler level can affect:

• heat transfer;

• lubrication;

• fusion;

• mechanical performance.

High-filler formulations may require a different stabilization and lubrication balance.

Processing Temperature

Higher processing temperatures generally increase the thermal load placed on PVC.

The required stabilization level should therefore be evaluated against actual barrel and melt temperatures.

Residence Time

PVC remaining inside an extruder for longer periods experiences greater thermal exposure.

Applications with longer processing cycles may require stronger long-term heat stability.

Lubricant System

Lubricants and heat stabilizers interact closely.

Changing wax, stearic acid, calcium stearate, paraffin, or other lubricants can alter processing behavior even if stabilizer dosage remains unchanged.

Recycled PVC Content

Recycled PVC may already have experienced thermal processing.

Its stabilization requirement can therefore differ from virgin material.

Manufacturers using recycled content should normally conduct formulation testing instead of applying the same additive dosage automatically.

What Problems Can Indicate Insufficient PVC Stabilization?

Several production symptoms may suggest that the PVC stabilization system needs adjustment.

Early Yellowing

If PVC becomes yellow soon after processing begins, thermal stability may be inadequate.

However, excessive temperature or long residence time should also be checked.

Brown or Dark Material

Severe discoloration may indicate advanced PVC degradation.

Production should be evaluated for:

• excessive melt temperature;

• dead zones inside equipment;

• long residence time;

• insufficient stabilizer;

• contamination.

Unstable Extrusion

Fluctuating melt behavior can sometimes result from an incorrect balance between stabilization, lubrication, fusion, and processing temperature.

Poor Surface Finish

Roughness, flow marks, sticking, or inconsistent gloss may indicate processing imbalance.

The cause may involve stabilizer formulation, lubrication, fusion, or equipment conditions.

Frequent Cleaning Requirements

PVC degradation inside barrels and dies may create deposits that force manufacturers to stop production for cleaning more frequently.

Improving thermal stability can help reduce degradation-related buildup, although mechanical and formulation factors should also be investigated.

How Stable PVC Processing Improves Production Efficiency

The value of a stabilizer extends beyond chemical protection of the polymer.

More consistent PVC processing can influence overall factory efficiency.

A stable formulation may contribute to:

• fewer extrusion interruptions;

• lower scrap generation;

• more uniform product color;

• fewer dimensional deviations;

• easier process control;

• reduced reformulation frequency;

• more predictable batch-to-batch production.

Consider a PVC pipe manufacturer operating a continuous extrusion line.

If minor temperature variations repeatedly cause yellowing or surface defects, operators may need to reduce production speed or stop the line.

A better-balanced stabilization system can increase process tolerance, allowing the line to operate more consistently.

The commercial benefit therefore comes not simply from the price of the stabilizer itself, but from its effect on total production stability and yield.

What Should PVC Manufacturers Consider When Choosing a Lead Salt Stabilizer?

Industrial buyers should evaluate more than the additive price per kilogram.

Several technical factors deserve attention.

Heat Stability

Ask for information regarding both initial and long-term thermal stability.

This is particularly important for continuous extrusion.

Lubrication Balance

Determine whether the product is a pure stabilizer or a complete one-pack stabilizer/lubricant system.

A one-pack system may simplify production control.

Compatibility With the PVC Formulation

Provide the supplier with relevant information such as:

• PVC resin type;

• filler level;

• lubricant system;

• processing temperature;

• product type;

• required color;

• current production problems.

A stabilizer recommended without understanding the formulation may not deliver optimum results.

Batch Consistency

For high-volume PVC manufacturing, consistency between additive batches is particularly important.

Variation in stabilizer composition may affect fusion, color, and extrusion parameters.

Technical Support

A capable PVC additive supplier should be able to help evaluate issues involving:

• yellowing;

• plate-out;

• poor fusion;

• excessive lubrication;

• inadequate heat stability;

• surface defects.

Technical support can be more valuable than simply changing additive dosage.

Target Market Requirements

Lead-containing materials are subject to restrictions or specific requirements in many applications and markets.

PVC manufacturers should verify the applicable environmental, product-safety, end-use, and import requirements before selecting any stabilizer system.

Where lead-based systems are unsuitable, alternative stabilization technologies such as calcium-zinc systems should be evaluated.

Why One-Pack Stabilizers Can Simplify PVC Production

Traditional PVC formulation may involve adding several ingredients separately.

A one-pack stabilizer combines selected components into one controlled additive system.

Depending on the formulation, this may include:

• heat stabilizers;

• internal lubricants;

• external lubricants;

• processing modifiers;

• other functional additives.

For PVC factories, this approach can offer several practical benefits.

Easier Dosing

Operators handle fewer individual raw materials.

Improved Formulation Consistency

The ratio between important additives is controlled during stabilizer production.

Reduced Weighing Errors

Fewer manual dosing steps reduce the possibility of formulation mistakes.

Faster Production Preparation

Compound preparation can become simpler, especially in plants operating multiple high-speed mixers.

For manufacturers looking to improve production repeatability, a properly customized one-pack system can therefore be an effective option.

Stabilizer Selection Should Be Based on the Entire PVC System

One of the most common mistakes in PVC formulation is evaluating additives individually.

PVC processing is a system.

The performance of a stabilizer is influenced by:

• resin;

• calcium carbonate;

• lubricants;

• processing aids;

• impact modifiers;

• pigments;

• equipment;

• temperature;

• screw design;

• production speed.

For example, a processing problem that appears to be insufficient thermal stability may actually result from excessive shear or poor lubrication.

Likewise, delayed fusion may not require additional stabilizer at all—it may require adjustment of the lubricant package.

For this reason, industrial PVC manufacturers should ideally evaluate stabilizers through production trials under actual processing conditions.

Frequently Asked Questions

What is the main function of lead salt stabilizer in PVC?

Its primary function is to improve the thermal stability of PVC during processing. It helps slow PVC degradation and reduce the impact of hydrogen chloride released during decomposition.

Why does PVC turn yellow during processing?

Yellowing commonly occurs when PVC begins to thermally degrade. Excessive processing temperature, long residence time, inadequate stabilization, poor lubrication, or equipment dead zones may contribute to the problem.

Can lead salt stabilizer improve PVC extrusion stability?

Yes. When properly formulated, the stabilizer can expand the processing window and support more consistent melt behavior, color, and continuous extrusion performance.

Can lead stabilizers contain lubricants?

Yes. Many commercial one-pack PVC stabilizers combine heat stabilizing components with internal and external lubricants to improve dosing and processing consistency.

How much lead salt stabilizer should be added to PVC?

There is no universal dosage. The appropriate addition level depends on the PVC resin, filler content, product type, processing temperature, lubricant package, equipment, and required thermal stability. Production trials are recommended.

What products can use lead-based PVC stabilizers?

Historically, lead stabilization systems have been used in applications such as PVC pipes, fittings, profiles, sheets, and cable compounds. Suitability must also be evaluated against applicable product and regional requirements.

What are alternatives to lead stabilizers?

Depending on the application, alternatives may include calcium-zinc, organotin, barium-zinc, and other mixed-metal stabilization systems.

Conclusion

Stable PVC production requires more than simply reaching the correct extrusion temperature. The polymer must remain chemically and mechanically stable throughout mixing, fusion, extrusion, molding, and cooling.

A properly designed lead salt stabilizer supports this process by delaying thermal degradation, controlling acidic decomposition products, maintaining color stability, and helping provide a wider processing window.

For PVC manufacturers, the best stabilizer is not necessarily the product with the highest stabilizer content or lowest purchase price. It is the formulation that works reliably with the specific PVC resin, filler system, equipment, processing conditions, and final product requirements.

By evaluating heat stability together with lubrication, fusion behavior, batch consistency, and actual production conditions, PVC processors can reduce scrap, improve product consistency, and maintain more stable continuous production.
